K8S（kubernetes）
1. 集群部署
1.1 集群规划
1.1.1 软件环境
| OS | |
|---|---|
| Docker | v24.0.7 |
| K8S | v1.20.9 |
| Kubeadm | v1.20.9 |
1.1.2 节点配置
| 主机 | 角色 | IP | CPU | 内存 |
|---|---|---|---|---|
| k8s-master | Master | 192.168.1.81 | 4H | 40G |
| k8s-node1 | Node | 192.168.1.82 | 4H | 40G |
| k8s-node2 | Node | 192.168.1.83 | 4H | 40G |
1.2 准备工作
1.2.1 修改host配置
# vim /etc/hosts
192.168.1.81 k8s-master
192.168.1.82 k8s-node1
192.168.1.83 k8s-node21.2.2 配置ssh免密登录
先生成公钥对，再把公钥远程复制到所有节点
[root@node1 ~]# ssh-keygen
[root@node1 ~]# ssh-copy-id k8s-node1
[root@node1 ~]# ssh-copy-id k8s-node2
[root@node1 ~]# ssh-copy-id node3
[root@node1 ~]# ssh node2
Last login: Mon Oct 2 17:18:39 2023 from 192.168.5.1171.2.3 关闭Swap分区
# 临时关闭，重启恢复
[root@node1 ~]# swapoff -a
# 永久关闭
echo vm.swappiness = 0 >> /etc/sysctl.conf
[root@node1 ~]# sysctl -p
[root@node1 ~]# cat /etc/fstab
/dev/mapper/centos-swap swap swap defaults 0 01.2.4 禁用SELinux
[root@node1 ~]# sed -i 's/SELINUX=enforcing/SELINUX=disabled/' /etc/sysconfig/selinux1.2.5 关闭防火墙
systemctl disable firewalld --now修改内核参数
[root@node1 ~]# modprobe br_netfilter
[root@node1 ~]# echo "modprobe br_netfilter" >> /etc/profile
[root@node1 ~]# tee /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
# 重新加载配置
[root@node1 ~]# sysctl -p /etc/sysctl.d/k8s.conf1.2.6 配置集群时钟同步
Centos7默认使用Chrony工具而非NTP进行时间同步，修改硬件时钟为UTC，时区为本地时区，所有节点执行如下修改
# 硬件时钟设置为UTC
timedatectl set-local-rtc 0
# 设置本地时区，显示本地时间
timedatectl set-timezone Asia/Shanghai
# 手动加载RTC设置
hwclock --systohc
# 验证
[root@node1 ~]# timedatectl
Local time: Tue 2023-10-03 11:26:44 CST
Universal time: Tue 2023-10-03 03:26:44 UTC
RTC time: Tue 2023-10-03 03:26:44
Time zone: Asia/Shanghai (CST, +0800)
NTP enabled: yes
NTP synchronized: yes
RTC in local TZ: no
DST active: n/a1.3 安装软件
1.3.1 安装docker
- 卸载docker
yum remove docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-engine安装yum源
sudo yum install -y yum-utils device-mapper-persistent-data lvm2 yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo安装docker
yum install docker-ce docker-ce-cli containerd.io docker-compose-plugin设置开机启动docker
# 开机启动docker并立即启动 systemctl enable docker --now # 查看docker运行状态 systemctl status docker配置docker镜像源
sudo mkdir -p /etc/docker sudo tee /etc/docker/daemon.json <<-'EOF' { "registry-mirrors": ["https://92ycw303.mirror.aliyuncs.com"] } EOF sudo systemctl daemon-reload sudo systemctl restart docker
1.3.2 安装三大组件 kubeadm、kubelet、kubectl
配置k8s的Yum源
[root@node1 ~]# cat /etc/yum.repos.d/kubernetes.repo [kubernetes] name=Kubernetes baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/ enabled=1 gpgcheck=0安装三大组件
# 所有节点都安装 [root@node1 ~]# yum install -y kubelet-1.20.9 kubeadm-1.20.9 kubectl-1.20.9 # 所有节点设置开机启动 [root@node1 ~]# systemctl enable kubelet --now初始化k8s集群（初次安装不用执行）
kubeadm reset rm -rf /etc/kubernetes & rm -rf /var/lib/etcd/ & rm -rf $HOME/.kube初始化主节点
# 所有节点添加 echo "192.168.1.81 cluster-endpoint" >> /etc/hosts # 只在主节点执行 kubeadm init \ --apiserver-advertise-address=192.168.1.81 \ --control-plane-endpoint=cluster-endpoint \ --image-repository registry.cn-hangzhou.aliyuncs.com/google_containers \ --kubernetes-version v1.20.9 \ --service-cidr=10.96.0.0/12 \ --pod-network-cidr=192.168.0.0/16初始化主节点之后会生成一些命令提示(如下代码块)
Your Kubernetes control-plane has initialized successfully! To start using your cluster, you need to run the following as a regular user: mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config Alternatively, if you are the root user, you can run: export KUBECONFIG=/etc/kubernetes/admin.conf You should now deploy a pod network to the cluster. Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at: https://kubernetes.io/docs/concepts/cluster-administration/addons/ You can now join any number of control-plane nodes by copying certificate authorities and service account keys on each node and then running the following as root: kubeadm join cluster-endpoint:6443 --token 1mopok.l0r7o5dhly1eyb4i \ --discovery-token-ca-cert-hash sha256:d67770aa65d526b9e159b8d2b11d3ed2ce466b7e6b30153270415e1a252a5d20 \ --control-plane Then you can join any number of worker nodes by running the following on each as root: kubeadm join cluster-endpoint:6443 --token 1mopok.l0r7o5dhly1eyb4i \ --discovery-token-ca-cert-hash sha256:d67770aa65d526b9e159b8d2b11d3ed2ce466b7e6b30153270415e1a252a5d20根据输出提示要执行 如下命令：
mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config
1.3.3 安装网络插件
下载
calico.yaml并保存到本地curl https://docs.projectcalico.org/v3.15/manifests/calico.yaml -O应用
calico.yaml# 提交 kubectl apply -f calico.yaml # 验证是否成功 [root@node1 ~]# kubectl get pod -A | grep calico kube-system calico-kube-controllers-577f77cb5c-s6zfl 1/1 Running 0 15h kube-system calico-node-7gsfr 1/1 Running 0 15h kube-system calico-node-hb2k8 1/1 Running 0 15h kube-system calico-node-xt4bl 1/1 Running 0 15h # 如果想要删除，执行如下命令： kubectl delete -f calico.yaml # 也可以修改配置 #3888行 - name: CALICO_IPV4POOL_CIDR #3889行 value: "172.20.0.0/16"

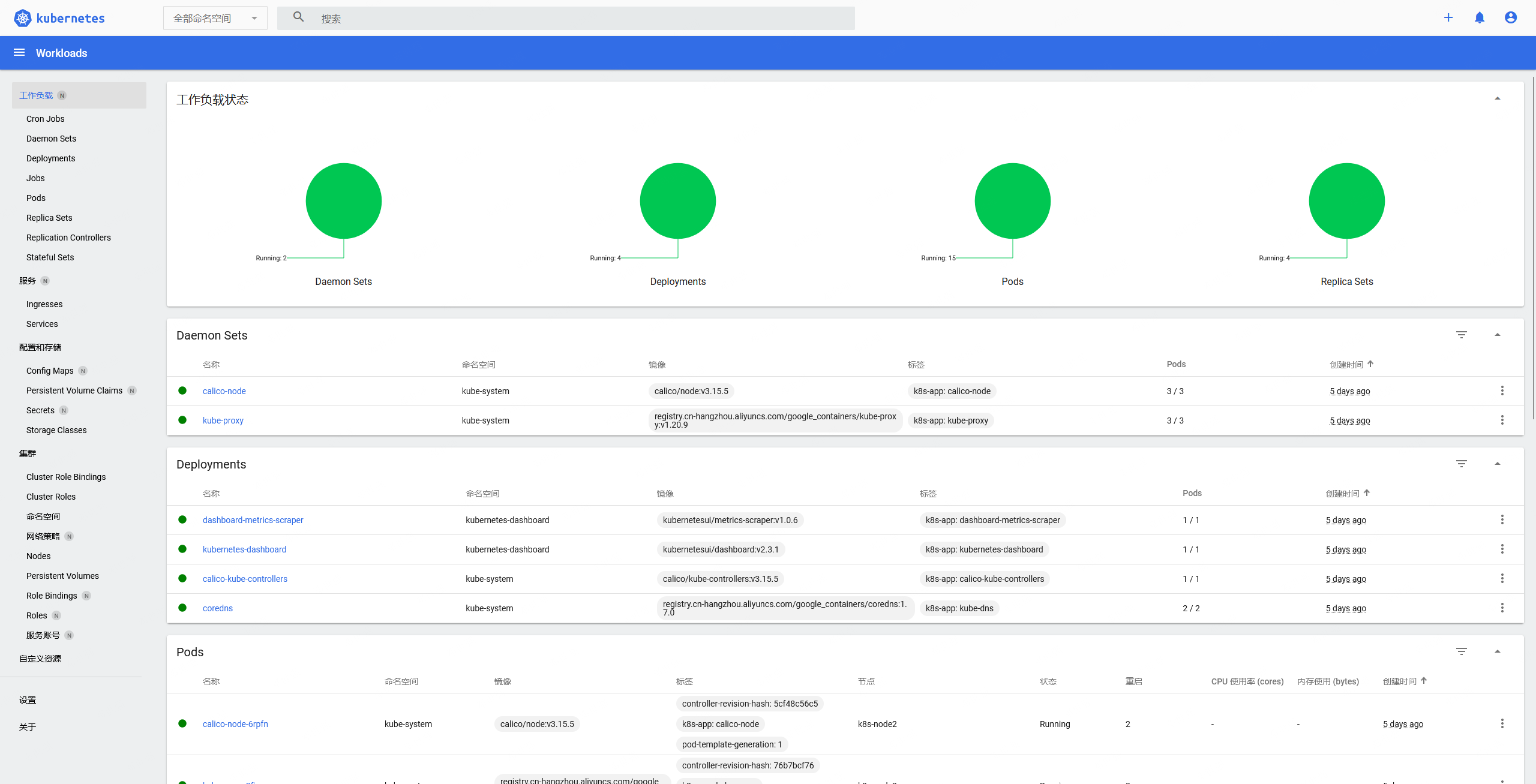

1.3.4 安装kubernetes-dashboard
通过kubectl命令安装
kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml对外暴露访问端口
# 对外暴露访问端口，由--type=ClusterIP修改为--type=NodePort kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard查看端口：32271
[root@k8s-master ~]# kubectl get svc -A | grep kubernetes-dashboard kubernetes-dashboard dashboard-metrics-scraper ClusterIP 10.100.244.187 <none> 8000/TCP 5d13h kubernetes-dashboard kubernetes-dashboard NodePort 10.100.16.109 <none> 443:32271/TCP 5d13h创建dashboard用户
先创建一个
yaml文件vi k8s-dashboard-account.yaml加入如下配置：apiVersion: v1 kind: ServiceAccount metadata: name: admin-user namespace: kube-system --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: admin-user roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cluster-admin subjects: - kind: ServiceAccount name: admin-user namespace: kube-system再执行如下命令：
[root@k8s-master ~]# kubectl create -f k8s-dashboard-account.yaml [root@k8s-master ~]# kubectl -n kube-system create token admin-user [root@k8s-master ~]# kubectl get secret -n kube-system|grep kubernetes-dashboard-token [root@k8s-master ~]# kubectl get secret -n kube-system|grep admin|awk '{print $1}' admin-user-token-jb4rc [root@k8s-master ~]# kubectl describe secret admin-user-token-jb4rc -n kube-system|awk '/^token/ {print $2}' eyJhbGciOiJSUzI1NiIsImtpZCI6IkFCdTBkZ0pPaEZvX1RPOHEwUXZkZVBDTzE5VE1OTVNDOVd4c0hPQ2tjTGcifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWpiNHJjIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIyOTRmYTc4MC0wN2M5LTRkZDUtYjA5MS1iZTI3MWYzOGRmNGEiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.H4e2f7SmgOkQ0YOEWMwKQ5uzXcQ-j1Q7zK44oKNCfZmkqOF63N55kho8ojCAQVbhFgwm3LqK5nLFd6CDK4H9lF9M1j36uRPwC9iO8wLdcOh_xmVCvw9AVMLVS8dzfnopFLPB-ImtbTJUAo0h3mF-ChHqUVlDeSXE9DaFSTpvKdDAGftKx4CjgRKgJWUhIqFytcilwjr6yErMK3SyzjaBgVYlryMD1-0t0ecoTraH5vE4l8lw7aTeW_pbwrvgpqpzNm9GtnC3OtHQQUZQOCiugZY9Ak9ff5zf7uVmjrL9Hcc3jgtd7KpEpUcPVhHDp_laaU4JTFg3Lco3ho-SJGSQEw登录 可以用集群的任意ip:端口访问
https://192.168.1.82:32271
2. 集群实战
2.1 创建namespace

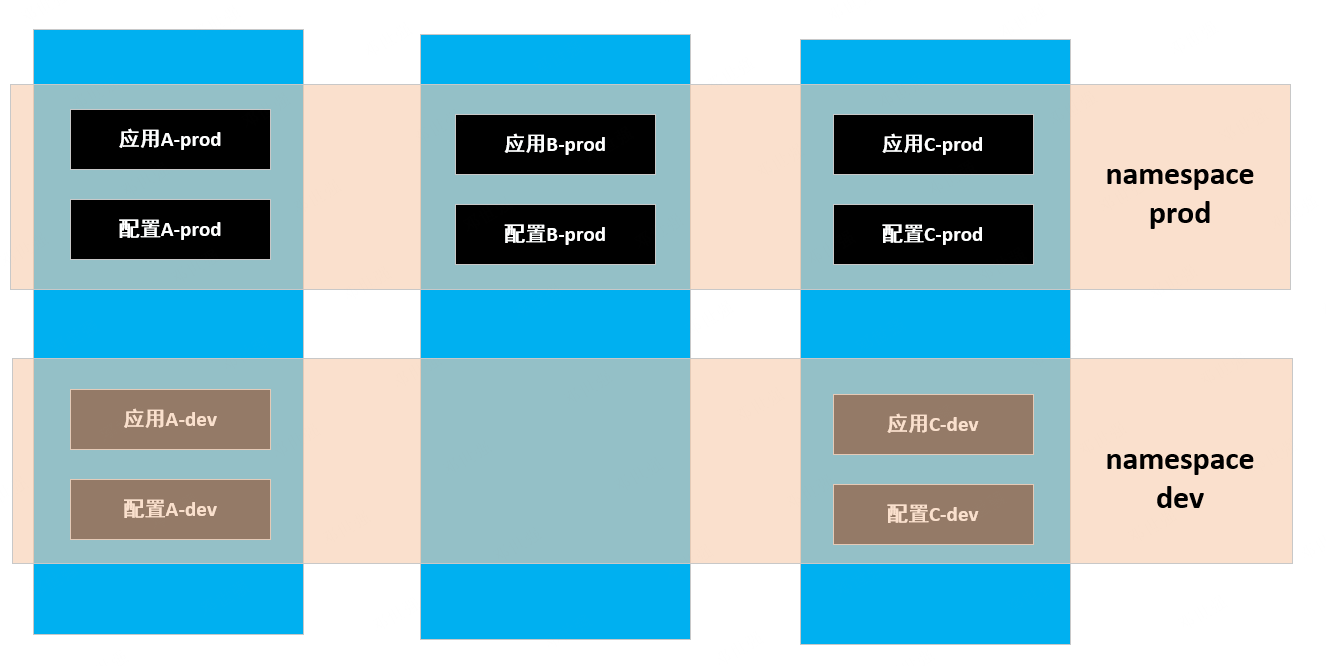

namespace用来隔离资源，但并不隔离网络
2.1.1 命令行方式
# 创建namespace（ns）
kubectl create ns hello
# 删除namespace
kubectl delete ns hello
# 查看namespace
[root@k8s-master ~]# kubectl get ns
NAME STATUS AGE
default Active 5d15h
kube-node-lease Active 5d15h
kube-public Active 5d15h
kube-system Active 5d15h
kubernetes-dashboard Active 5d15h
# 查看应用 -A 所有namespace下的， 如果想看某个namespace下的 kubectl get pods -n kubernetes-dashboard
[root@k8s-master ~]# kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system calico-kube-controllers-bc4f7c685-p4qm5 1/1 Running 2 5d15h
kube-system calico-node-6rpfn 1/1 Running 2 5d15h
kube-system calico-node-gls67 1/1 Running 2 5d15h
kube-system calico-node-kwwf6 1/1 Running 2 5d15h2.1.2 yaml方式
创建
hello.yaml文件，写入如下apiVersion: v1 kind: Namespace metadata: name: hello应用
hello.yamlkubectl apply -f hello.yaml
2.2 Pod

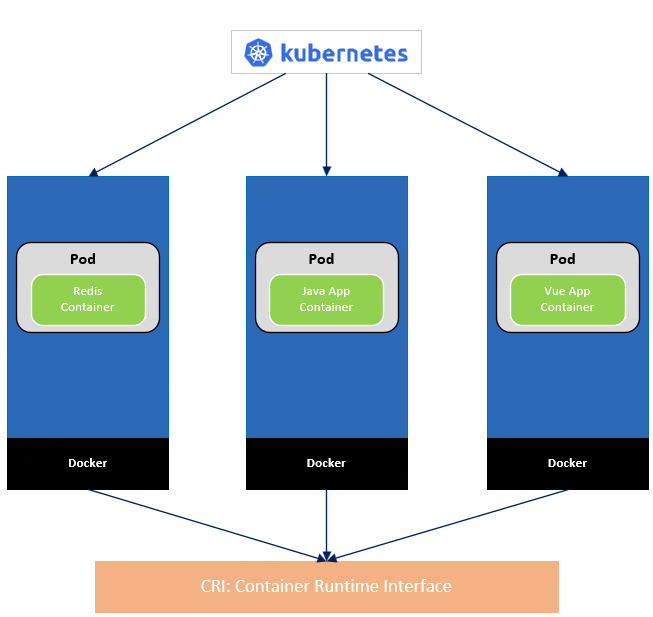

运行中的一组容器，Pod是Kubernetes中应用的最小单位
2.2.1 命令行方式
# 创建pod
[root@k8s-master ~]# kubectl run mynginx --image=nginx
pod/mynginx created
# 查看pod
[root@k8s-master ~]# kubectl get pod
NAME READY STATUS RESTARTS AGE
mynginx 1/1 Running 0 32s
# 查看 mynginx 创建过程
kubectl describe pod mynginx
[root@k8s-master ~]# kubectl describe pod mynginx
################# ---------------------------查看描述开始-------------------------------- #######################
Name: mynginx
Namespace: default
Priority: 0
Node: k8s-node1/192.168.1.82
Start Time: Sat, 30 Dec 2023 19:04:05 +0800
Labels: run=mynginx
Annotations: cni.projectcalico.org/podIP: 192.168.36.65/32
cni.projectcalico.org/podIPs: 192.168.36.65/32
Status: Running
IP: 192.168.36.65
IPs:
IP: 192.168.36.65
Containers:
mynginx:
Container ID: docker://cc10dd32214787b1e9a8324efe2b28fdc77f80c24df689fe3855c16c0fbc5177
Image: nginx
Image ID: docker-pullable://nginx@sha256:0d17b565c37bcbd895e9d92315a05c1c3c9a29f762b011a10c54a66cd53c9b31
Port: <none>
Host Port: <none>
State: Running
Started: Sat, 30 Dec 2023 19:04:18 +0800
Ready: True
Restart Count: 0
Environment: <none>
Mounts:
/var/run/secrets/kubernetes.io/serviceaccount from default-token-qp8t4 (ro)
Conditions:
Type Status
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
default-token-qp8t4:
Type: Secret (a volume populated by a Secret)
SecretName: default-token-qp8t4
Optional: false
QoS Class: BestEffort
Node-Selectors: <none>
Tolerations: node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events: # 事件
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 3m58s default-scheduler Successfully assigned default/mynginx to k8s-node1
Normal Pulling 3m58s kubelet Pulling image "nginx"
Normal Pulled 3m47s kubelet Successfully pulled image "nginx" in 10.746888323s
Normal Created 3m47s kubelet Created container mynginx
Normal Started 3m46s kubelet Started container mynginx
################# ---------------------------查看描述结束-------------------------------- #######################
# 删除pod
[root@k8s-master ~]# kubectl delete pod mynginx -n default
pod "mynginx" deleted2.2.2 yaml方式
apiVersion: v1
kind: Pod
metadata:
labels:
run: mynginx
name: mynginx # pod名字
spec:
containers: # 容器
- image: nginx # 镜像的名字
name: mynginx # 容器的名字创建pod
[root@k8s-master ~]# kubectl apply -f mynginxpod.yaml
pod/mynginx created以yaml文件方式创建的pod 删除pod
[root@k8s-master ~]# kubectl delete -f mynginxpod.yaml
pod "mynginx" deleted2.2.3 可视化界面yaml方式
apiVersion: v1
kind: Pod
metadata:
labels:
run: mynginx
name: mynginx # pod名字
namespace: default
spec:
containers: # 容器
- image: nginx # 镜像的名字
name: mynginx # 容器的名字查看pod 的日志
[root@k8s-master ~]# kubectl logs -f mynginx
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: info: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: info: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Launching /docker-entrypoint.d/30-tune-worker-processes.sh
/docker-entrypoint.sh: Configuration complete; ready for start up
2023/12/30 11:32:34 [notice] 1#1: using the "epoll" event method
2023/12/30 11:32:34 [notice] 1#1: nginx/1.21.5
2023/12/30 11:32:34 [notice] 1#1: built by gcc 10.2.1 20210110 (Debian 10.2.1-6)
2023/12/30 11:32:34 [notice] 1#1: OS: Linux 3.10.0-1160.el7.x86_64
2023/12/30 11:32:34 [notice] 1#1: getrlimit(RLIMIT_NOFILE): 1048576:1048576
2023/12/30 11:32:34 [notice] 1#1: start worker processes
2023/12/30 11:32:34 [notice] 1#1: start worker process 31
2023/12/30 11:32:34 [notice] 1#1: start worker process 32
2023/12/30 11:32:34 [notice] 1#1: start worker process 33
2023/12/30 11:32:34 [notice] 1#1: start worker process 34查看pod更完善的信息
#每个pod - k8s 都会分配一个ip 使用 kubectl get pod -owide查看
[root@k8s-master ~]# kubectl get pod -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
mynginx 1/1 Running 0 6m27s 192.168.36.67 k8s-node1 <none> <none>如果想要更改里面的内容，需要进入里面 命令： kubectl exec -it mynginx -- /bin/bashsh
[root@k8s-master ~]# kubectl get pod
NAME READY STATUS RESTARTS AGE
mynginx 1/1 Running 0 11m
[root@k8s-master ~]# kubectl exec -it mynginx -- /bin/bash
root@mynginx:/# ls /usr/share/nginx/html/
50x.html index.html2.2.4 多个应用

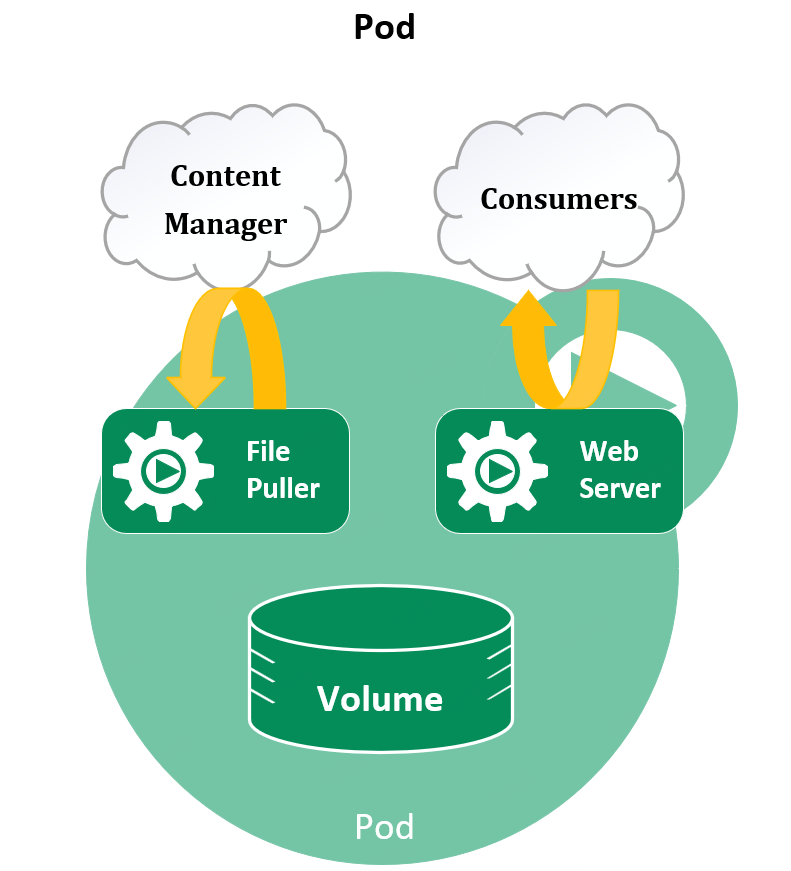

一个pod里部署多个应用
apiVersion: v1
kind: Pod
metadata:
labels:
run: mulapply
name: mulapply # pod名字
spec:
containers: # 容器
- image: nginx # 镜像的名字
name: nginx # 容器的名字
- image: tomcat:8.5.68 # 镜像的名字
name: tomcat # 容器的名字创建
[root@k8s-master ~]# kubectl apply -f mulapply.yaml
pod/mulapply created每隔1s输出 pod
watch -n 1 kubectl get pod
Every 1.0s: kubectl get pod Sat Dec 30 19:58:49 2023
NAME READY STATUS RESTARTS AGE
mulapply 2/2 Running 0 2m8s
mynginx 1/1 Running 0 26m2.3 Deployment

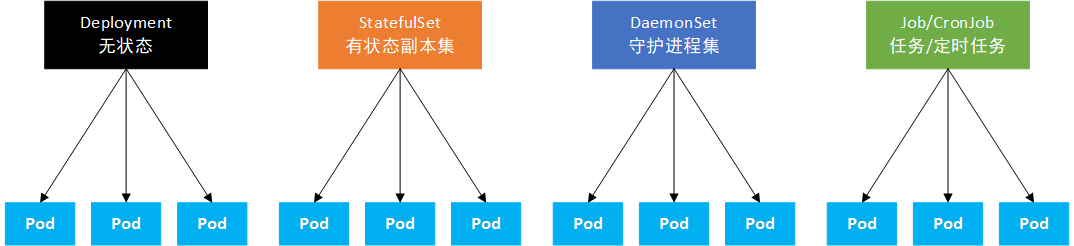

控制Pod，使Pod拥有多副本，自愈，扩缩容等能力
2.3.1 使用命令的方式创建
# 先创建pod 和创建deployment作对比
kubectl run mynginx --image=nginx
# 创建deployment
kubectl create deployment mytomcat --image=tomcat:8.5.68
##### 多副本的创建方式
[root@k8s-master ~]# kubectl create deployment mynginxMul --image=nginx --replicas=3
deployment.apps/mytomcat created
# 查看 pod
[root@k8s-master ~]# kubectl get pod
NAME READY STATUS RESTARTS AGE
mytomcat-6f5f895f4f-bw2vf 1/1 Running 0 31s
mytomcat-6f5f895f4f-grshf 1/1 Running 0 31s
mytomcat-6f5f895f4f-n89z5 1/1 Running 0 31s
# 查看 deploy
[root@k8s-master ~]# kubectl get deploy
NAME READY UP-TO-DATE AVAILABLE AGE
mynginx-mul 3/3 3 3 52s
# 删除deployment
kubectl delete deploy mytomcat2.3.2 可视化界面创建
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: my-deploy
name: my-deploy # Deployment名字
spec:
replicas: 3 # 副本数量
selector:
matchLabels:
app: my-deploy
template:
metadata:
labels:
app: my-deploy
spec:
containers: # 容器
- image: nginx # 镜像的名字
name: nginx # 容器的名字2.3.3 扩缩容
# 扩容
[root@k8s-master ~]# kubectl scale --replicas=5 deploy/my-deploy
deployment.apps/my-deploy scaled
# 缩容
[root@k8s-master ~]# kubectl scale --replicas=2 deploy/my-deploy
deployment.apps/my-deploy scale也可以用以下的命令：
[root@k8s-master ~]# kubectl edit deploy my-deploy
deployment.apps/my-deploy edited2.3.4 自愈&故障转移
# k8s提供的监控
[root@k8s-master ~]# kubectl get pod -w
NAME READY STATUS RESTARTS AGE
my-deploy-779ddd99b6-2scgh 1/1 Running 1 4m51s
my-deploy-779ddd99b6-kk768 1/1 Running 0 17m
my-deploy-779ddd99b6-kssvh 1/1 Running 0 21m
my-deploy-779ddd99b6-2scgh 1/1 Terminating 1 9m9s
my-deploy-779ddd99b6-7jfbg 0/1 Pending 0 0s
my-deploy-779ddd99b6-7jfbg 0/1 Pending 0 0s
my-deploy-779ddd99b6-7jfbg 0/1 ContainerCreating 0 0s
my-deploy-779ddd99b6-7jfbg 0/1 ContainerCreating 0 1s
my-deploy-779ddd99b6-7jfbg 1/1 Running 0 17s2.3.5 滚动更新
# 查看部署使用的是什么镜像
[root@k8s-master ~]# kubectl get deploy my-deploy -oyaml
apiVersion: apps/v1
kind: Deployment
metadata:
annotations:
deployment.kubernetes.io/revision: "1"
kubectl.kubernetes.io/last-applied-configuration: |
{"apiVersion":"apps/v1","kind":"Deployment","metadata":{"annotations":{},"labels":{"app":"my-deploy"},"name":"my-deploy","namespace":"default"},"spec":{"replicas":3,"selector":{"matchLabels":{"app":"my-deploy"}},"template":{"metadata":{"labels":{"app":"my-deploy"}},"spec":{"containers":[{"image":"nginx","name":"nginx"}]}}}}
creationTimestamp: "2023-12-30T12:42:13Z"
generation: 4
labels:
app: my-deploy
managedFields:
- apiVersion: apps/v1
fieldsType: FieldsV1
fieldsV1:
f:metadata:
f:annotations:
.: {}
f:kubectl.kubernetes.io/last-applied-configuration: {}
f:labels:
.: {}
f:app: {}
f:spec:
f:progressDeadlineSeconds: {}
f:revisionHistoryLimit: {}
f:selector: {}
f:strategy:
f:rollingUpdate:
.: {}
f:maxSurge: {}
f:maxUnavailable: {}
f:type: {}
f:template:
f:metadata:
f:labels:
.: {}
f:app: {}
f:spec:
f:containers:
k:{"name":"nginx"}:
.: {}
f:image: {}
f:imagePullPolicy: {}
f:name: {}
f:resources: {}
f:terminationMessagePath: {}
f:terminationMessagePolicy: {}
f:dnsPolicy: {}
f:restartPolicy: {}
f:schedulerName: {}
f:securityContext: {}
f:terminationGracePeriodSeconds: {}
manager: kubectl-client-side-apply
operation: Update
time: "2023-12-30T12:42:13Z"
- apiVersion: apps/v1
fieldsType: FieldsV1
fieldsV1:
f:spec:
f:replicas: {}
manager: kubectl-edit
operation: Update
time: "2023-12-30T12:48:19Z"
- apiVersion: apps/v1
fieldsType: FieldsV1
fieldsV1:
f:metadata:
f:annotations:
f:deployment.kubernetes.io/revision: {}
f:status:
f:availableReplicas: {}
f:conditions:
.: {}
k:{"type":"Available"}:
.: {}
f:lastTransitionTime: {}
f:lastUpdateTime: {}
f:message: {}
f:reason: {}
f:status: {}
f:type: {}
k:{"type":"Progressing"}:
.: {}
f:lastTransitionTime: {}
f:lastUpdateTime: {}
f:message: {}
f:reason: {}
f:status: {}
f:type: {}
f:observedGeneration: {}
f:readyReplicas: {}
f:replicas: {}
f:updatedReplicas: {}
manager: kube-controller-manager
operation: Update
time: "2023-12-30T13:07:58Z"
name: my-deploy
namespace: default
resourceVersion: "33077"
uid: 1ab50694-431d-4a1f-a4ff-a0c2ded647db
spec:
progressDeadlineSeconds: 600
replicas: 3
revisionHistoryLimit: 10
selector:
matchLabels:
app: my-deploy
strategy:
rollingUpdate:
maxSurge: 25%
maxUnavailable: 25%
type: RollingUpdate
template:
metadata:
creationTimestamp: null
labels:
app: my-deploy
spec:
containers:
- image: nginx
imagePullPolicy: Always
name: nginx
resources: {}
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
dnsPolicy: ClusterFirst
restartPolicy: Always
schedulerName: default-scheduler
securityContext: {}
terminationGracePeriodSeconds: 30
status:
availableReplicas: 3
conditions:
- lastTransitionTime: "2023-12-30T12:42:13Z"
lastUpdateTime: "2023-12-30T12:42:33Z"
message: ReplicaSet "my-deploy-779ddd99b6" has successfully progressed.
reason: NewReplicaSetAvailable
status: "True"
type: Progressing
- lastTransitionTime: "2023-12-30T13:07:58Z"
lastUpdateTime: "2023-12-30T13:07:58Z"
message: Deployment has minimum availability.
reason: MinimumReplicasAvailable
status: "True"
type: Available
observedGeneration: 4
readyReplicas: 3
replicas: 3
updatedReplicas: 3滚动更新
kubectl set image deployment/my-deploy nginx=nginx:1.16.1 --record
kubectl rollout status deployment/my-deploy[root@k8s-master ~]# watch -n 1 kubectl get pod -owide
[root@k8s-master ~]# kubectl get pod -w
NAME READY STATUS RESTARTS AGE
my-deploy-779ddd99b6-7jfbg 1/1 Running 0 8m10s
my-deploy-779ddd99b6-kk768 1/1 Running 0 30m
my-deploy-779ddd99b6-kssvh 1/1 Running 0 33m
my-deploy-577584cf55-xrssd 0/1 Pending 0 0s
my-deploy-577584cf55-xrssd 0/1 Pending 0 0s
my-deploy-577584cf55-xrssd 0/1 ContainerCreating 0 0s
my-deploy-577584cf55-xrssd 0/1 ContainerCreating 0 1s
my-deploy-577584cf55-xrssd 1/1 Running 0 25s
my-deploy-779ddd99b6-7jfbg 1/1 Terminating 0 8m49s
my-deploy-577584cf55-mxgvg 0/1 Pending 0 0s
my-deploy-577584cf55-mxgvg 0/1 Pending 0 0s
my-deploy-577584cf55-mxgvg 0/1 ContainerCreating 0 0s
my-deploy-577584cf55-mxgvg 0/1 ContainerCreating 0 1s
my-deploy-779ddd99b6-7jfbg 0/1 Terminating 0 8m51s
my-deploy-577584cf55-mxgvg 1/1 Running 0 2s
my-deploy-779ddd99b6-kk768 1/1 Terminating 0 31m
my-deploy-577584cf55-7k9fs 0/1 Pending 0 0s
my-deploy-577584cf55-7k9fs 0/1 Pending 0 0s
my-deploy-577584cf55-7k9fs 0/1 ContainerCreating 0 0s
my-deploy-779ddd99b6-7jfbg 0/1 Terminating 0 8m52s
my-deploy-779ddd99b6-7jfbg 0/1 Terminating 0 8m52s
my-deploy-577584cf55-7k9fs 0/1 ContainerCreating 0 1s
my-deploy-779ddd99b6-kk768 0/1 Terminating 0 31m
my-deploy-577584cf55-7k9fs 1/1 Running 0 2s
my-deploy-779ddd99b6-kssvh 1/1 Terminating 0 34m
my-deploy-779ddd99b6-kk768 0/1 Terminating 0 31m
my-deploy-779ddd99b6-kk768 0/1 Terminating 0 31m
my-deploy-779ddd99b6-kssvh 0/1 Terminating 0 34m
my-deploy-779ddd99b6-kssvh 0/1 Terminating 0 34m
my-deploy-779ddd99b6-kssvh 0/1 Terminating 0 34m2.3.6 版本回退
# 历史记录
kubectl rollout history deployment/my-deploy
# 查看某个历史详情
kubectl rollout history deployment/my-deploy --revision=1
# 回滚(回到上次)
kubectl rollout undo deployment/my-deploy
# 回滚(回到指定版本)
[root@k8s-master ~]# kubectl rollout undo deployment/my-deploy --to-revision=1
deployment.apps/my-deploy rolled back2.4 工作负载
除了Deployment，k8s还有
StatefulSet，DaemonSet，Job等类型资源。我们称为工作负载。有状态应用使用
StatefulSet部署，无状态应用使用Deployment部署https://kubernetes.io/zh-cn/docs/concepts/workloads/controllers/
Deployment：无状态应用部署，比如微服务，提供多副本等功能 StatefulSet: 有状态应用部署，比如redis，提供稳定的存储，网络等功能 DaemonSet: 守护型应用部署，比如日志收集组件，在每个机器都能运行一份 Job/CronJob: 定时任务部署，比如垃圾清理组件，可以在指定时间运行
2.5 Service
将一组Pods公开为网络服务的抽象方法
# 暴露Deploy
[root@k8s-master ~]# kubectl expose deployment my-deploy --port=8080 --target-port=80 --type=NodePort #
[root@k8s-master ~]# kubectl expose deployment my-deploy --port=8080 --target-port=80 --type=ClusterIP
service/my-deploy exposed
[root@k8s-master ~]# kubectl get service
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 5d19h
my-deploy ClusterIP 10.98.22.102 <none> 8080/TCP 20s
[root@k8s-master ~]# ^C
[root@k8s-master ~]# curl 10.98.22.102:8080
2222
[root@k8s-master ~]# curl 10.98.22.102:8080
1111
[root@k8s-master ~]# curl 10.98.22.102:8080
3333
[root@k8s-master ~]# curl 10.98.22.102:8080
2222
[root@k8s-master ~]# curl 10.98.22.102:8080
1111
[root@k8s-master ~]# curl 10.98.22.102:8080
3333
[root@k8s-master ~]# curl 10.98.22.102:8080
1111
[root@k8s-master ~]# curl 10.98.22.102:8080
3333
[root@k8s-master ~]# curl 10.98.22.102:8080
2222
[root@k8s-master ~]# curl 10.98.22.102:8080
2222
[root@k8s-master ~]# curl 10.98.22.102:8080
1111
[root@k8s-master ~]# curl 10.98.22.102:8080
2222
# 使用标签检索pod
kubectl get pod -l app=mydeployyaml方式暴露
apiVersion: v1
kind: Sevice
metadata:
labels:
app: my-deploy
name: my-deploy
spec:
selector:
app: my-deploy
ports:
- port: 8080
protocol: TCP
targetPort: 80服务名.所在名称空间.svc
2.6 Ingress
curl upload.thylove.cn/k8s/ingress.yaml[root@k8s-master ~]# kubectl get svc -A
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 6d15h
ingress-nginx ingress-nginx-controller NodePort 10.97.173.198 <none> 80:30070/TCP,443:32128/TCP 6m59s
ingress-nginx ingress-nginx-controller-admission ClusterIP 10.108.83.243 <none> 443/TCP 6m59s
kube-system kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 6d15h
kubernetes-dashboard dashboard-metrics-scraper ClusterIP 10.100.244.187 <none> 8000/TCP 6d15h
kubernetes-dashboard kubernetes-dashboard NodePort 10.100.16.109 <none> 443:32271/TCP 6d15hhttp://192.168.1.81:30070/
http://192.168.1.81:32128/
apiVersion: apps/v1
kind: Deployment
metadata:
name: thylove-prototype
spec:
replicas: 3
selector:
matchLabels:
app: thylove-prototype
template:
metadata:
labels:
app: thylove-prototype
spec:
containers:
- name: thylove-prototype
image: registry.cn-qingdao.aliyuncs.com/docker_dsq/thylove-prototype:v1
ports:
- containnerPort: 8080
---
apiVersion: apps/v1
kind: Service
metadata:
labels:
app: thylove-prototype
name: thylove-prototype
spec:
selector:
app: thylove-prototype
ports:
- port: 8080
protocol: TCP
targetProt: 8080域名访问：
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-host-bar
spec:
ingressClassName: nginx
rules:
- host: "thylove.prototype.cn"
http:
paths:
- pathType: Prefix
path: "/"
backend:
service:
name: thylove-prototype
port:
number: 8080
